A Trofeo with adjustment track in the heel and crampon slots, for price-conscious light touring
- In words
- Technical specifications
In words
Intro

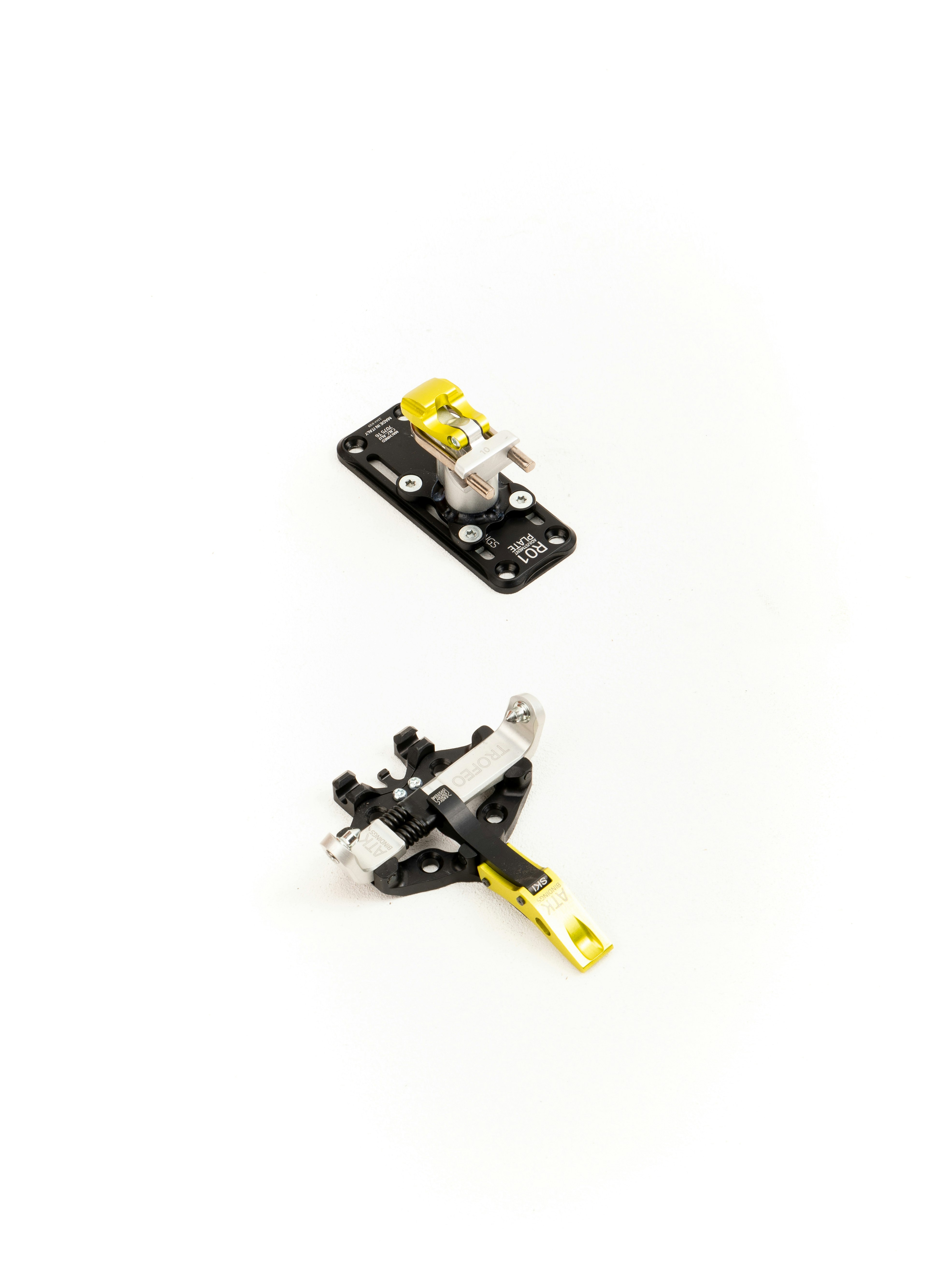

The Trofeo is ATK’s entry-level race model. By contrast, its Plus version, which has four different release settings and the standard R01 slider track providing 30 mm of adjustment, transforms it into a lightweight touring model that’s excellent value for money. The toe features dual springs on one pin jaw while the other is solid. The aluminum is less milled than other models, meaning reduced machine time (and so lower production costs). Like all modern race bindings, the heel uses the U-spring system. The ski crampon slot is removable. Want more features? Then check out the Haute Route Plus—which has adjustable release values, CAM System and new Speed toe—or the Kuluar 12 SL, which has a lighter toe but still has adjustable release values.
Technical specifications
Materials
POM, stainless steel, Alu 7075
Type
full pin
Ski brake
no, available with the R15.XXX adjustment plate
Number of mounting screws
8
Crampon slot
Yes
Adjustable release range
No
Available versions
Trofeo 4 Plus, Trofeo 8 Plus, Trofeo 6 Plus, Trofeo, Trofeo Brake, Trofeo Brake Lightweight
Walking modes
flat, +42, +49 mm
Individual weight
170 gr
Drop
6.1 mm
Toe cap weight
91 gr
Heel cap weight
100 gr
Front pin height
29.5 mm
Rear pin height
35.6 mm
Minimum release range
6 DIN
Maximum release range
10 DIN
Released in
2020
Price
419 €
