In words
Intro

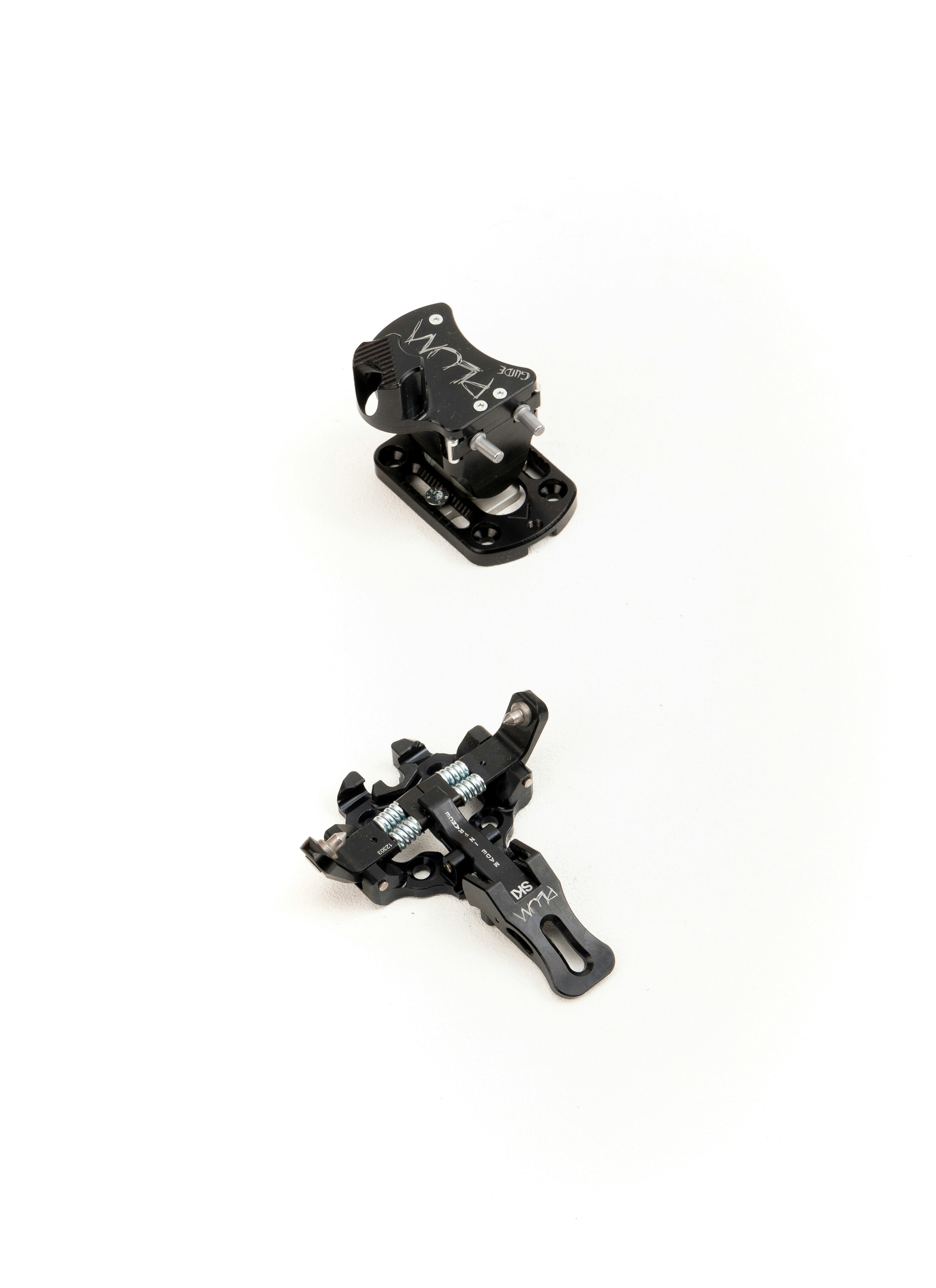

With the arrival of the Karibou, the Guide slips down into second place in terms of weight/release values. It's Plum's trademark product and uses the same mechanical principles as the original pin binding with upgraded machined aluminum components, making it even more durable (there's a ten-year guarantee). It has a high ramp angle that doesn't work well with small-medium sized feet, which will basically be on tip-toes. The structure is robust, from the toe piece with two springs per wing, to the heel piece (with adjustable lateral and forward release settings) that resists play even without the elasticity of the pin system.
Technical specifications
Materials
stainless steel, POM, aluminum 7075T6
Type
full pin
Ski brake
no
Number of mounting screws
8
Crampon slot
Yes
Adjustable release range
Yes
Available versions
Guide 7
Walking modes
flat, + 59, + 84 mm
Individual weight
340 gr
Drop
16.8 mm
Toe cap weight
116 gr
Heel cap weight
224 gr
Front pin height
31 mm
Rear pin height
47.8 mm
Minimum release range
5.5 DIN
Maximum release range
12 DIN
Released in
2022
Price
449 €
